Lighting Handbook

Updated: Feb 24, 2022


Colour is a subjective psycho physiologic interpretation of the visible electromagnetic spectrum. Luminous sensations or images, produced in our retina, are sent to the brain and interpreted as a set of monochromatic sensations which constitute the colour of the light.

Lighting Handbook (photo credit:

The sense of sight does not analyze each radiation or chromatic sensation individually.

For each radiation, there is a colour designation, according to the frequency spectrum classification.

Figure 1. White light decomposition in the rainbow spectrum

Figure-1: White light decomposition in the rainbow spectrum

It is important to indicate that objects are distinguished by the colour assigned depending on their optical properties.

Objects neither have nor produce colour. They do have optical properties to reflect, refract and absorb colours of the light they receive, that is to say: the set of additive monochromatic sensations that our brain interprets as the colour of an object depends on the spectral composition of the light that illuminates such an object and on the optical properties possessed by the object to reflect, refract or absorb.

!!! Newton was the first one to discover the decomposition of white light in the group of colours that forms a rainbow.

When a white light beam went through a prism, the same effect as that indicated in above Figure-1 was obtained.

Radiation of a discontinuous spectrum source

Radiant energy of a gaseous discharge source, such as the ones of high-pressure sodium, high pressure mercury, argon, neon, etc., consists in a radiation integrated by small wavelength intervals which may be called emission peaks. Each gas has a wavelength characteristic of its own radiation which depends on the gas molecular structure through which discharge takes place.

This kind of discharge is usually called luminescence and it is characterised by temperature independent radiation types.

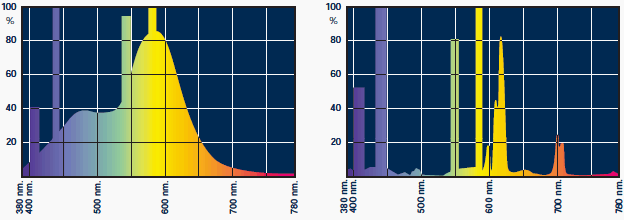

Left – Spectral distribution for a cold white coloured fluorescent lamp; Right – Spectral distribution for a high pressure mercury lamp of corrected colour

Left: Spectral distribution for a cold white coloured fluorescent lamp; Right: Spectral distribution for a high-pressure mercury lamp of corrected colour

The most common luminous sources or discharge lamps are fluorescent tubes: high-pressure mercury, high-pressure sodium and induction ones. As for incandescence, the spectroradiometer is used to obtain the spectral distribution curve. The spectroradiometer function obtained is indicated in the Figure above.

Wavelengths in nm. are placed in the abscissas, and values related to energy, with respect to the maximum, radiated understood as 100%, are placed in the ordinates.

Also, the specific potency in mW/nm wavelength is usually given in the ordinates.
